Qnubu
Qnubu Press Lion Automatic 20Tons Press (7.6x25cm Plate and 15x20cm Plate)
PREN0060
Sold by Natural Systems. More information
Our Qnubu Press AutoLion 20T is the most advanced press developed by Qnubu. It allows 100% automatic control of pressure, temperature and time. An ideal press for industrial processes.
New features and functionalities are incorporated for the most demanding extractors
New features and functionalities are incorporated for the most advanced extractors. demanding:
- Automatic: Automatic Hydraulic System, just by pressing a button. No air compressor needed.
- Long Plates: 5x20cm. The new elongated design allows the extraction to remain as short as possible between the plates. You can also put several bags in the same press.
- Interchangeable Plates: You can interchange the plates so it can adapt to all types of jobs and bag sizes. Available plates: 7.6x25cm and 15x20cm

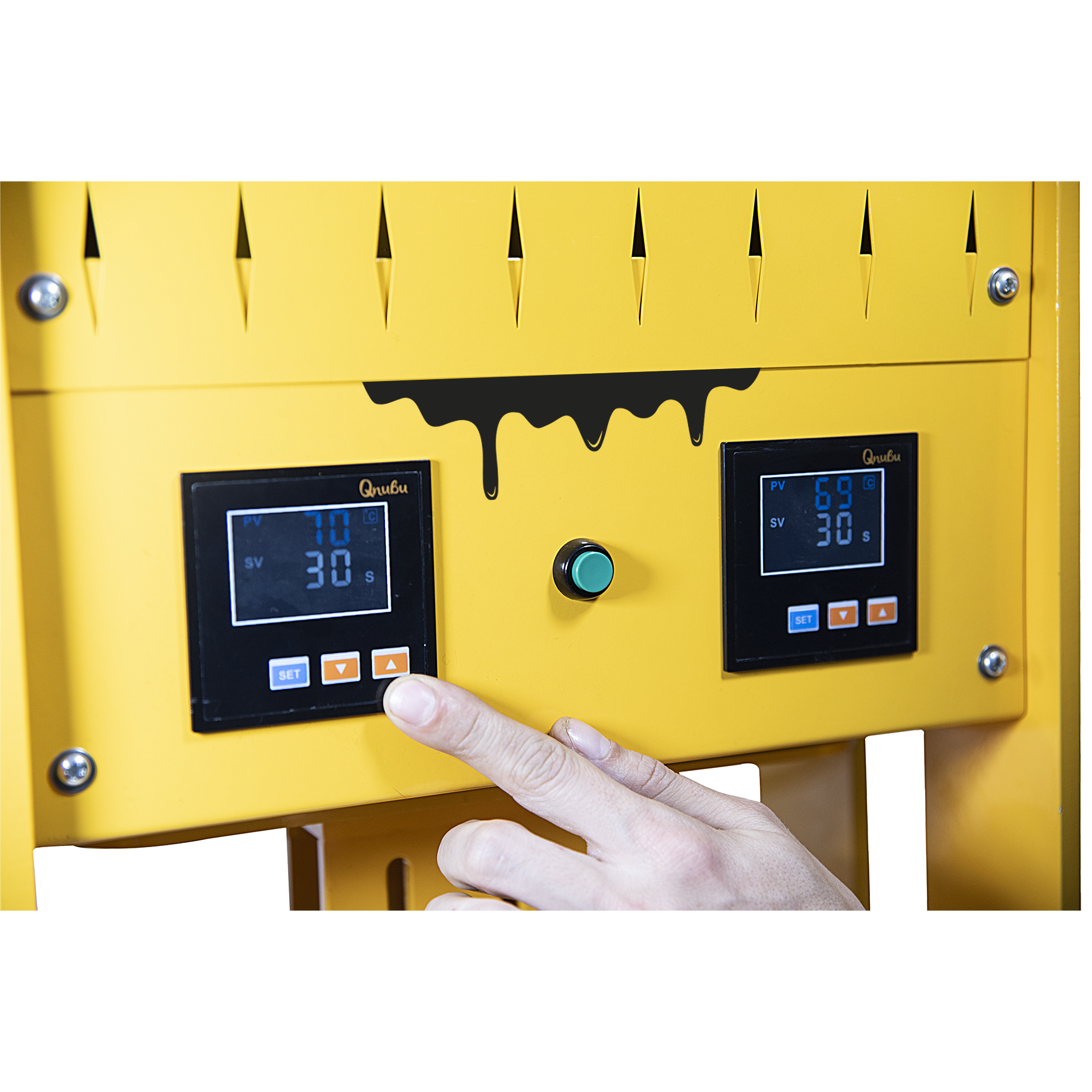

- Pressure Measurement / Adjustment: You can configure the desired pressure through the pressure adjustment system, visualizing at all times what pressure is being applied.
- New Design: It has a reinforced structure that allows greater resistance of the structure to high pressure.
Technical Characteristics
- Interchangeable plate 15x20CM / 7.6X25CM
- Double temperature control (0-200 °C)
- Timer 0-999 seconds - Acoustic warning
- 220V European plug
- Consumption: 2200W/h
- Weight: 74 kg
- Dimensions: 53x34.5x63cm (Length x Width x Height)
- Power: 2200W
- Current: 10A
- Voltage: 220V
- Frequency: 50Hz
- Certification: CE
"100% Automatic 100% Pressure / Heat / Time Control"
